Arducam 1MP*4 Quadrascopic Camera Bundle for Raspberry Pi & Jetson Nano/Xavier NX

SKU: B0267

Regular price £245.00 GBP
Regular price Sale price £245.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

Camera Specs
B0267
Sensor Omnivision OV9281 Monochrome Sensor
Sensor Size
1/4"
Resolution 1MP 1280 × 800
Aggregate mode Full Spelling Combine
Output/CSI-2 Speed ×1 CSI-2 2-lane Output Port/1.0 Gbps/Lane
External Trigger Supported
Frame Rates (Raspberry Pi)
RAW8: 5120x800@45fps, 5120x720@50fps, 2560x400@150fps
RAW10: 5120x800@35fps, 5120x720@40fps, 2560x400@110fps
Frame Rates (NVIDIA Jetson) RAW8: 5120x800@45fps, 5120x720@50fps, 2560x400@150fps
RAW10: 5120x800@35fps, 5120x720@40fps, 2560x400@110fps
Pixel Size 3µm
Shutter Type Global
Focus Distance 30mm to ∞ (infinity)
Focus Type Manual Focus
F.NO
F2.8
Camera Interface 2-lane MIPI CSI-2
Camera Board Size 24mm × 25mm
Camarray Hat Size 65mm × 56mm
Lens Mount M12 Mount
Distortion <1%
Focal Length 2.8mm
Field of View (FOV) 70° (H) × 47°(V)
IR Sensitivity Without an IR-cut filter, sensitive to IR light
Default Lens Low distortion M12 lens (Part Number: M27280M07S)
ISP Support Supported on Raspberry Pi, not supported on Nvidia Jetson

Overview

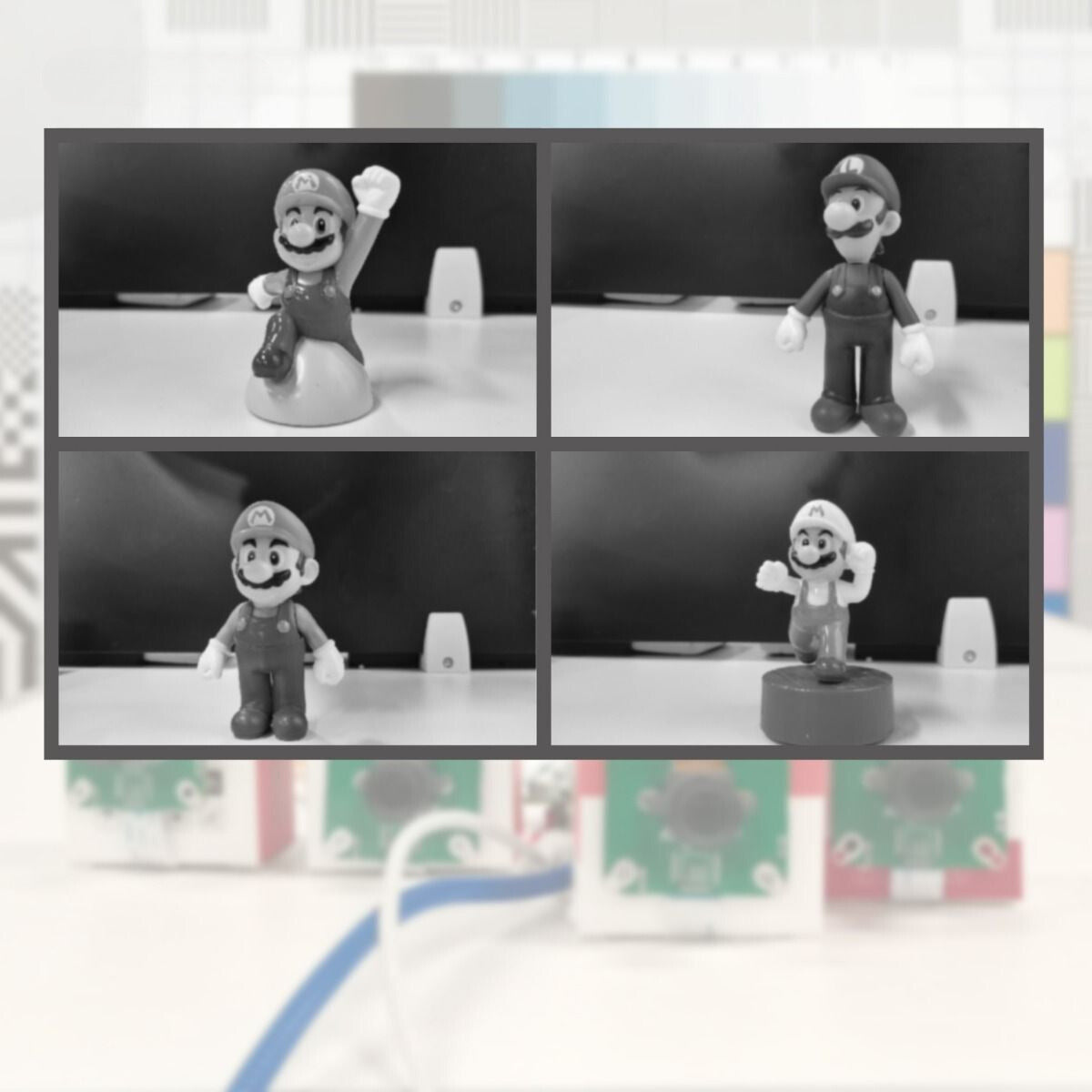

  • Complete Synchronisation: The frames of every camera are synchronised at the hardware level.
  • Wide Compatibility: Works with both Raspberry Pi and NVIDIA Jetson Nano/Xavier NX/AGX Orin/Orin Nano/Orin NX
  • Variable Baseline Extension: Compared to the fixed stereo camera module, this stereo camera bundle offers enhanced flexibility. The individual cameras can be utilised with a variable baseline device and managed via the computer control system to swiftly and dynamically adjust the moving components, enabling a multi-degree-of-freedom stereo quadrascopic vision.

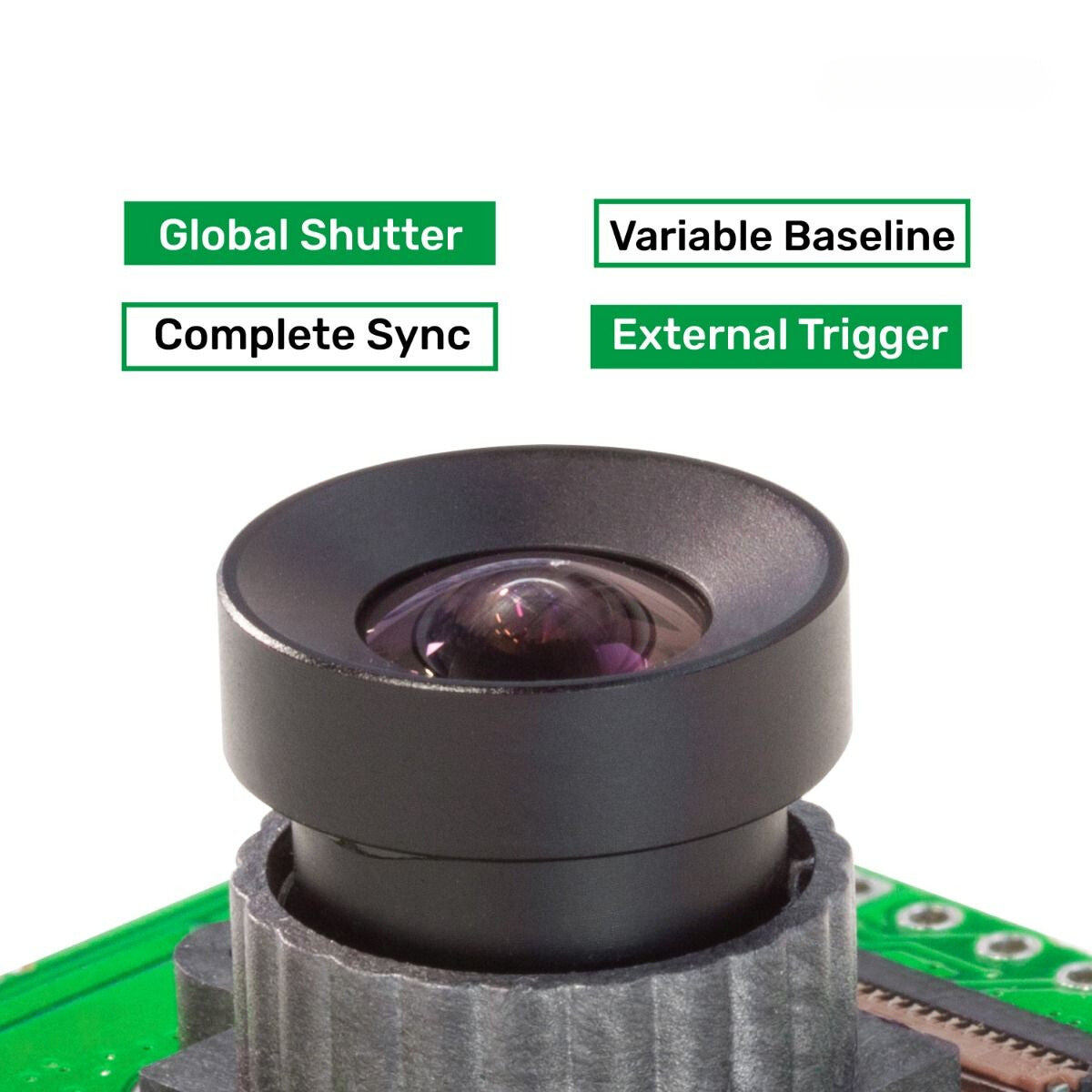

  • Mono Global Shutter: Capture high-speed moving objects with exceptional clarity and precision. By avoiding rolling artefacts, you can obtain a complete and accurate picture, surpassing the limitations of rolling shutter Pi cameras. With a frame rate of 70fps at 1280*2 x 800 on Jetson, you can enjoy smooth and detailed footage.

The Arducam quadrascopic camera bundle is a powerful combination of four 1MP OV9281 global shutter cameras and the innovative Arducam Camarray HAT. Building upon the success of the Arducam Synched Stereo Camera HAT, the Camarray takes multi-camera capabilities to the next level by enabling the interfacing of four synchronized MIPI camera modules to a single MIPI CSI-2 camera port on popular single-board computers like Raspberry Pi. With the release of the Camarray HAT, Arducam also introduces support for variable baselines in multi-camera applications, including the OV9281 cameras included in this bundle. This allows you to kickstart your prototyping for multi-camera projects and determine the optimal baseline.

Are you interested in the other multi-cameras or stereo cameras that are available? See our Multi-cameras collection.

Important Notes

  • The specification table above for Jetson Nano is for JetPack4.6/L4T32.6.1 on NVIDIA Jetson Nano/Xavier NX.
  • This kit is released for official Raspberry Pi/Jetson Nano/Xavier NX boards by default and does not support other third-party boards.
  • This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
  • Raspberry Pi and Jetson board are not included in the package.
  • This bundle kit is not recommended for Raspberry Pi Zero.
  • The OV9281 cameras in this kit are special and cannot be used directly on Raspberry Pi or Jetson.
  • This kit uses a 1MP OV9782 sensor. Due to the limitations of the sensor, the camera may experience lens shading under low exposure conditions.
  • The I2C signal and clock of each camera are fully synchronized. It is unavailable to capture the same frame of images at different exposure times for each camera.
  • The Camarray HAT is not sold alone for the following reasons:

    Most of the cameras on the market are not designed for synched stereo uses. We’ve modified our camera modules specifically for the Camarry HAT. Your own V1, V2 or HQ camera modules won’t directly work with it.
    The Camarray HAT requires different firmware for different Image sensors that are not natively working with your embedded systems. Your own OV9782 camera modules won’t directly work with it, and they are not easily interchangeable.

  • The lens on this camera is not interchangeable. If you need to replace the lens, please contact us.

Documentation

OV9281 Sensor Datasheet

Package Contents

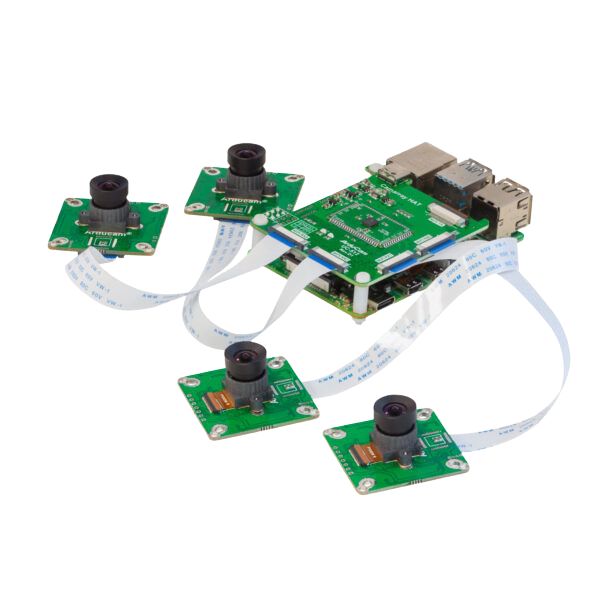

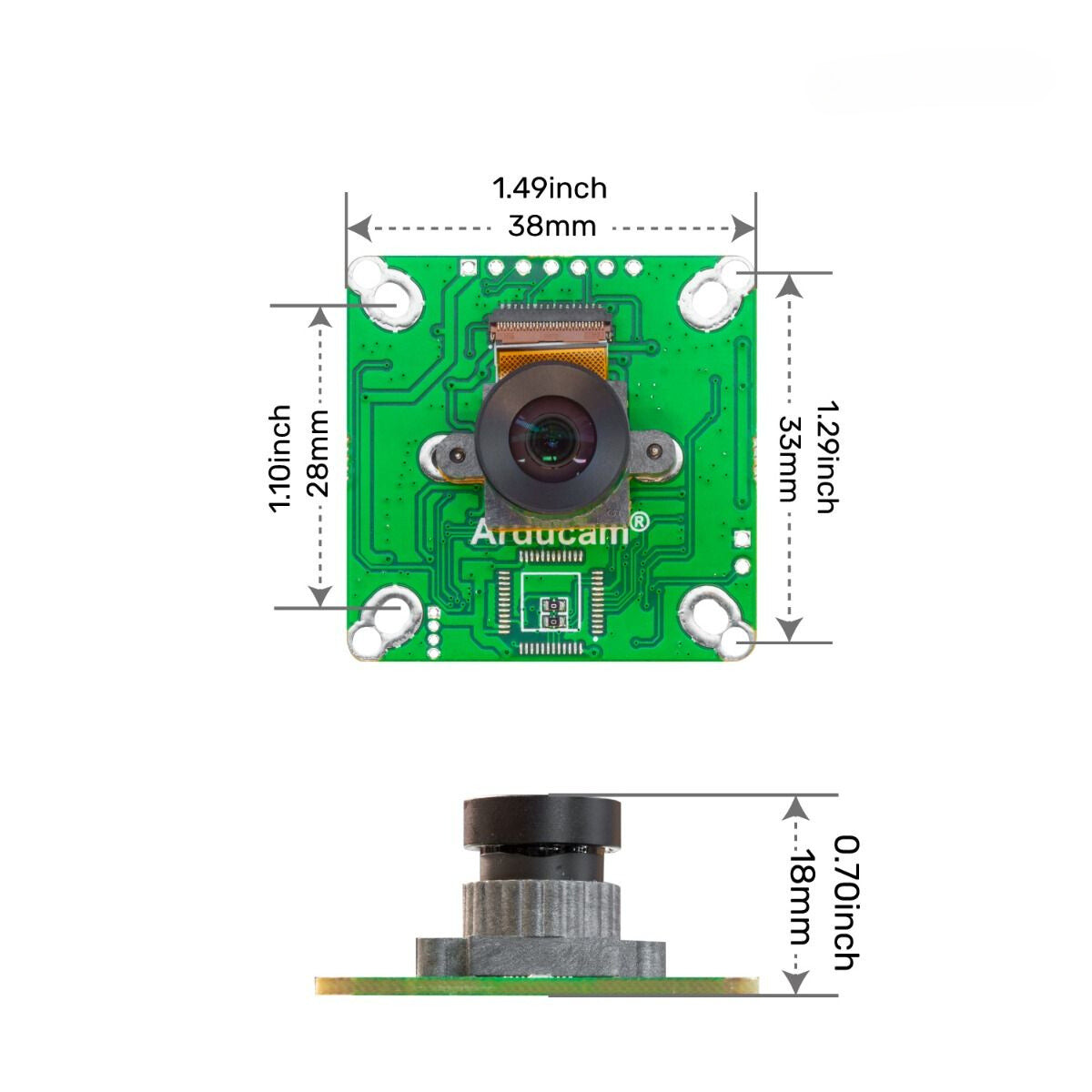

  • 4 × Arducam 1MP OV9281 global shutter camera module with low distortion M12 lens

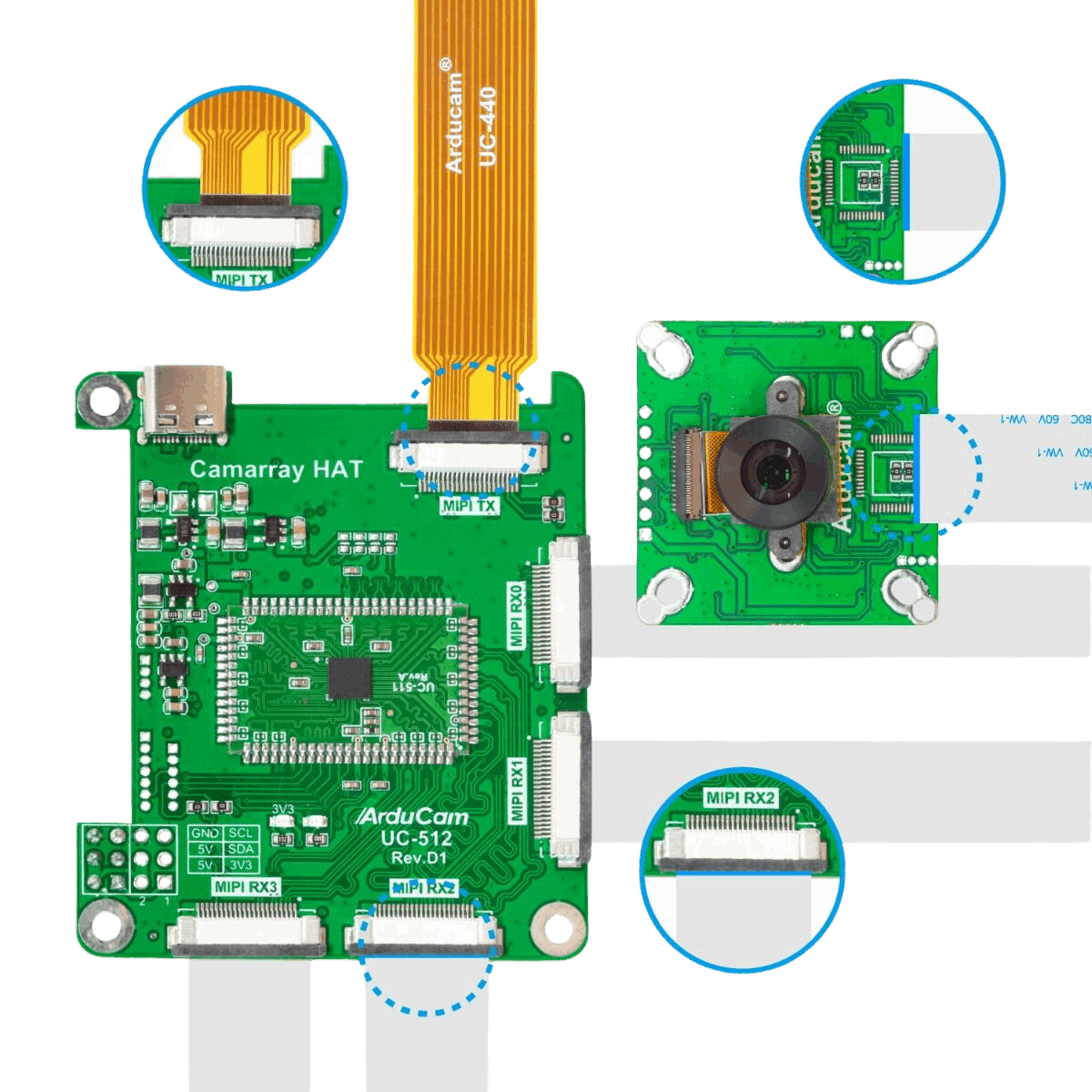

  • 1 × Arducam Camarray quadrascopic stereo camera HAT
  • 2 × 150mm/6inch 22pin to 22pin camera cable
  • 1 × 300mm/12inch 15pin to 22pin camera cable
  • 1 × 300mm/12inch 22pin to 22pin camera cable
  • 1 × 73mm/2.87inch 15pin to 22pin camera cable
  • 4 × M2.5*10mm Nylon Hex Standoffs
  • 4 × M2.5 Nylon Nuts
  • 4 × M2.5*6mm Nylon Screws

Example Applications

  • Robot Navigation
  • Head, Eye and Object Tracking
  • Gesture Detection
  • 3D measuring
  • 3D reconstruction
  • Depth-related vision applications, etc
