Arducam
16MP Wide Angle Mini UVC USB2.0 Camera Module with Microphone
SKU: B0268
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

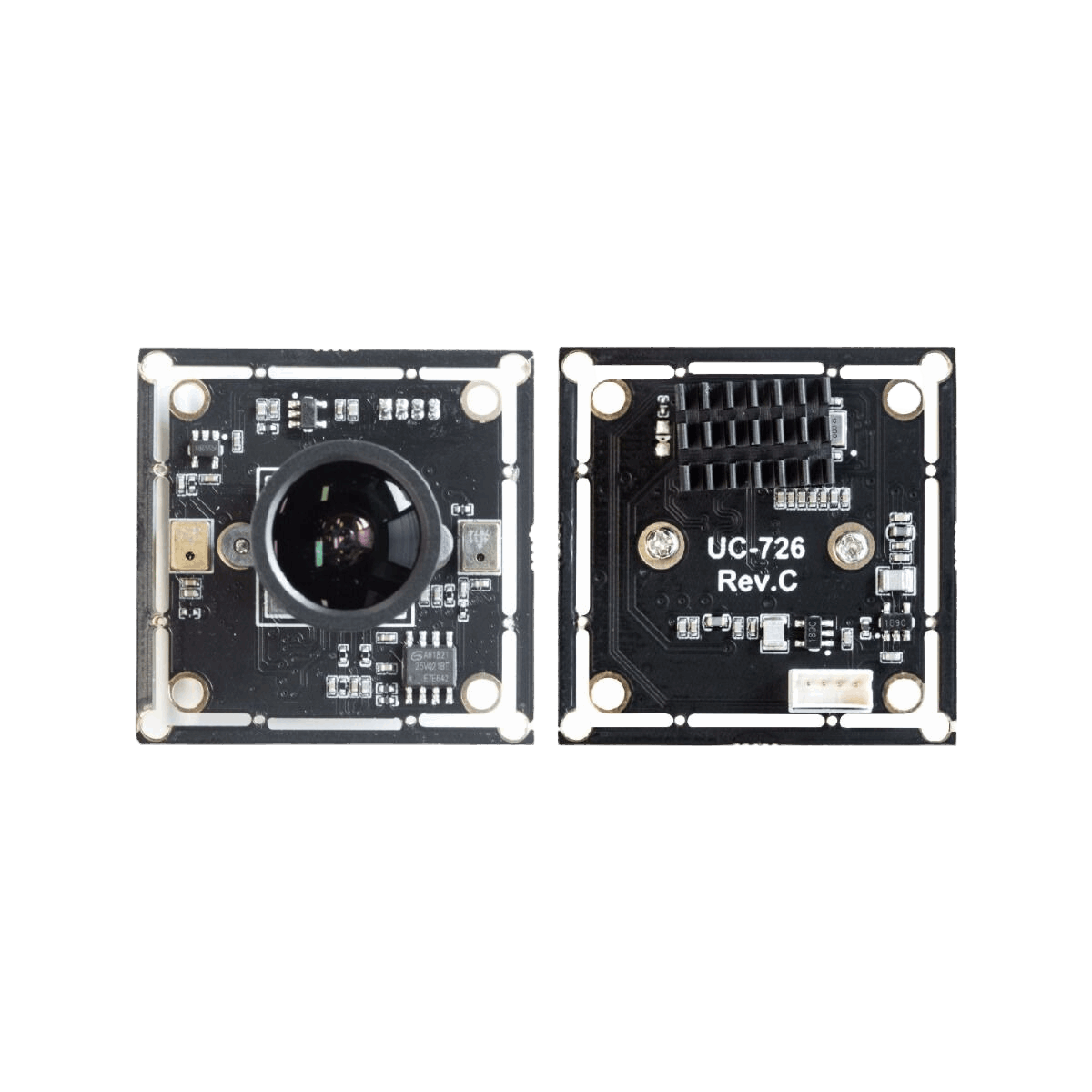

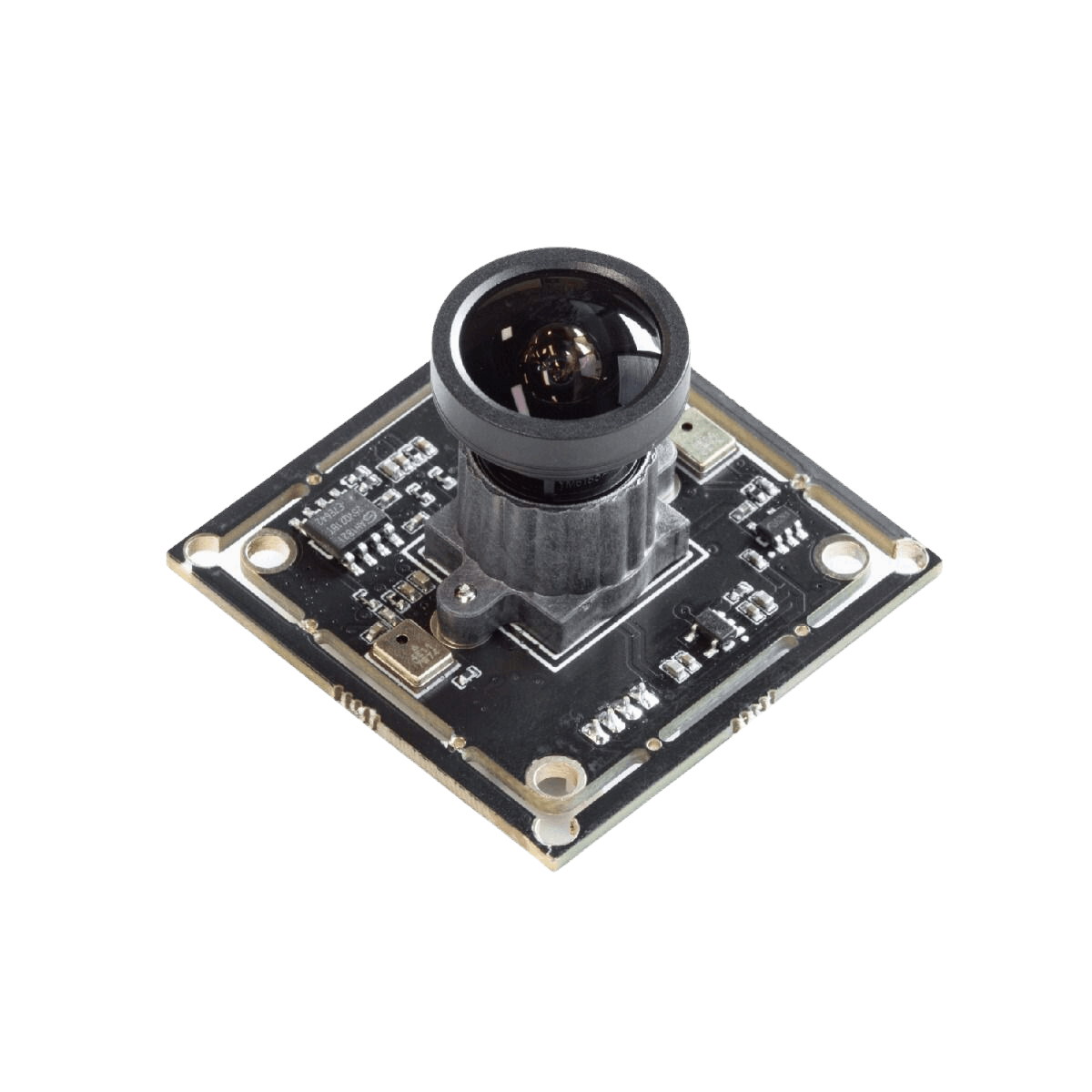

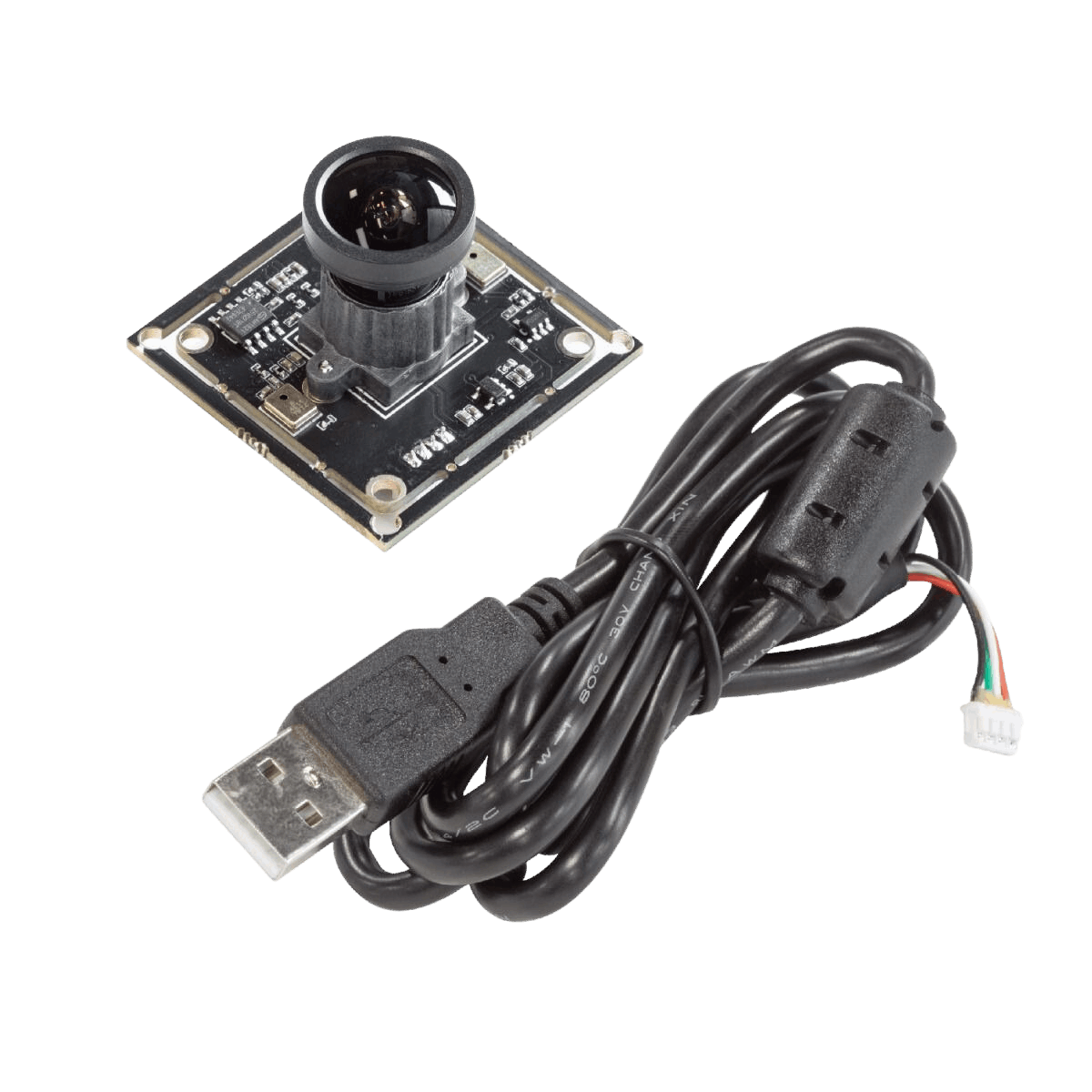

Based on a Sony 1/2.8" 16MP Sony IMX298 image sensor, the Arducam 16MP Camera Module is compatible with USB 2.0 cameras and has a 105 degree (H) M12 lens installed to it.
For crisp images and precise colour reproduction, this tiny camera module uses a 16MP IMX298 sensor. The maximum still image resolution is 4656 x 3496. Wide Angle: A high-quality M12 lens with an IR filter and a 105-degree horizontal wide view angle was mounted, giving the camera a wider field of view.
No need to worry about the required drivers. This camera has native UVC drivers for Windows, Linux and Mac. Plug and Play ready!
Looking for a different lens to use with this camera? See our full range of M12 Lenses.
Key Features
| Camera Specs |
B0268 |
|---|---|
| Sensor | Sony IMX298 |
| Format | 1/2.8" |
| Resolution | 16MP 4656×3496 |
| Pixel Size | 1.12µm |
| Frame Rates | MJPG 10fps@4656x3496/3264x2448/2592x1944/, 30fps@1080P/720P/1024x768; YUY2 8fps@1024x768, 10fps@640x768 |
| IR Sensitivity | Integral IR filter, only visible light |
| Field of View (H) | 105° |
| Focal Length | 2.72mm |
| Lens Type | M12 Mount |
| Dimensions | 38mm x 38mm |
| Shutter Type | Rolling shutter |
Example Applications
- Video conference
- Home Video surveillance system
- Day & night, low light vision security system
- Robot vision, Machine vision
