Arducam
12MP Wide Angle Camera Module for Jetson Nano/Xavier NX
SKU: B0482
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0482 |
|---|---|
| Sensor | Sony IMX708 |
| Sensor Size |
1/2.43” (7.4mm diagonal) |
|
Resolution |
11.9MP 4608 × 2592 |
| Video (L4t 32.x) |
4608 × 2592@14fps, 2304 × 1296@55fps, 1536 × 864@90fps |
| Field of View (FOV) |
150°(D) × 120°(H) × 66°(V) |
| Focus Type | Manual Focus |
| Focal Length |
2.87mm |
| Lens Type |
M12 Lens |
| F.NO |
F2.8 |
| Dimension | 25mm × 24mm |
| Pixel Size | 1.4µm |
Overview
- Sharp Images: Uses the IMX708 with 1/2.43" CMOS sensor

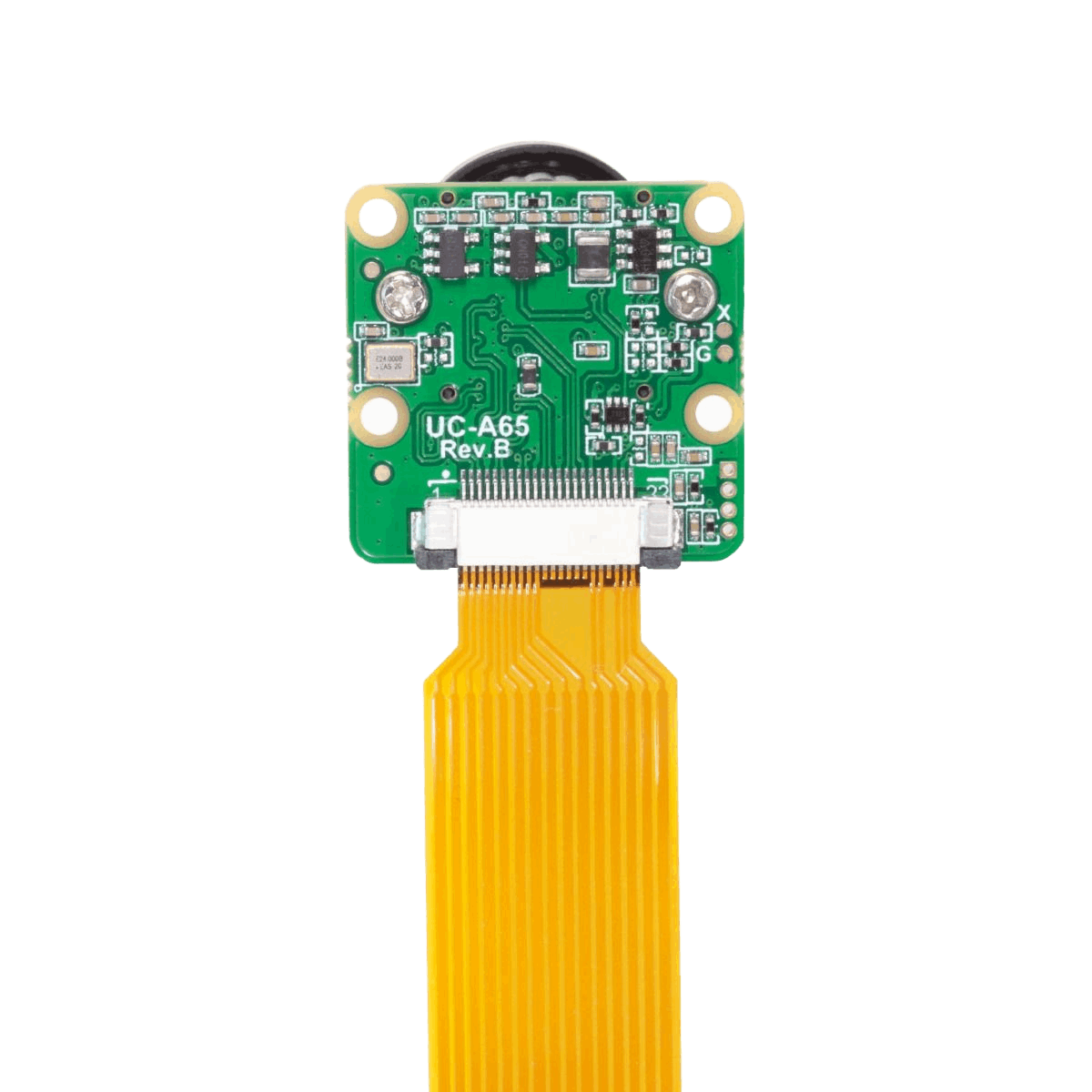

- Small in size: the size is identical to that of the Raspberry Pi Camera Module 3, measuring 25*24mm and featuring the same mounting holes
-

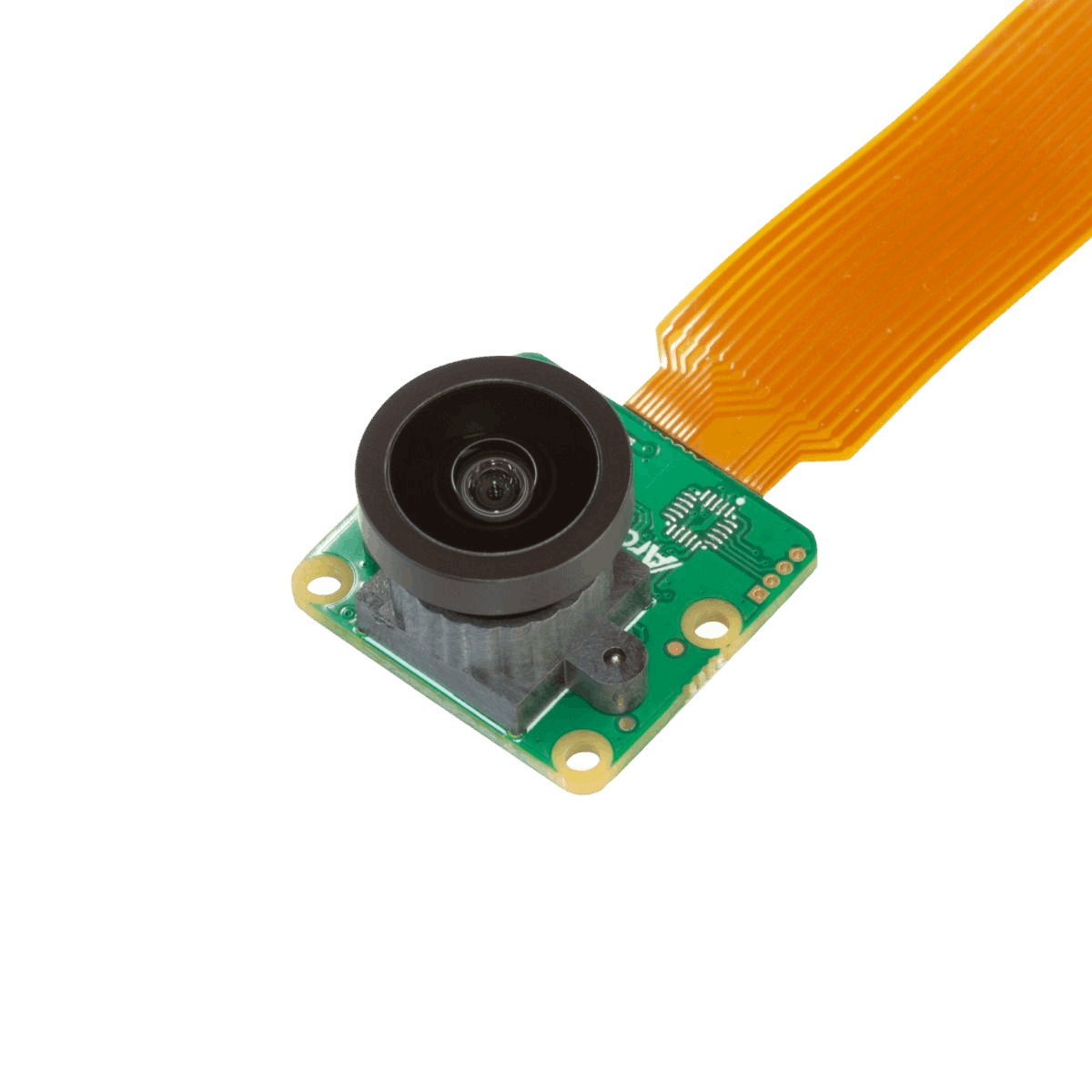

Interchangeable Lens: Equipped with a 150°(D) M12 lens. You can replace it with our range of M12 lenses (speak to us to confirm compatibility)

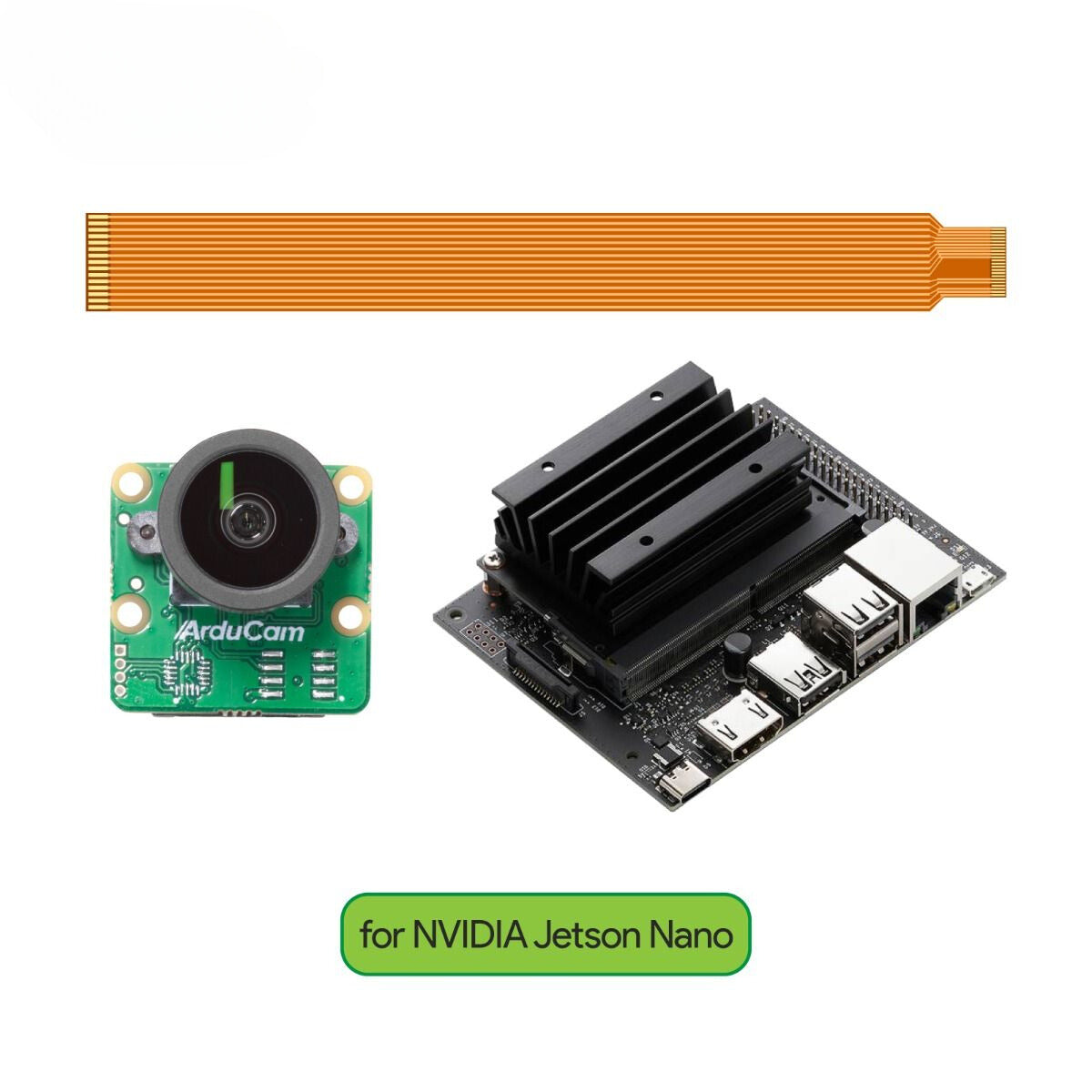

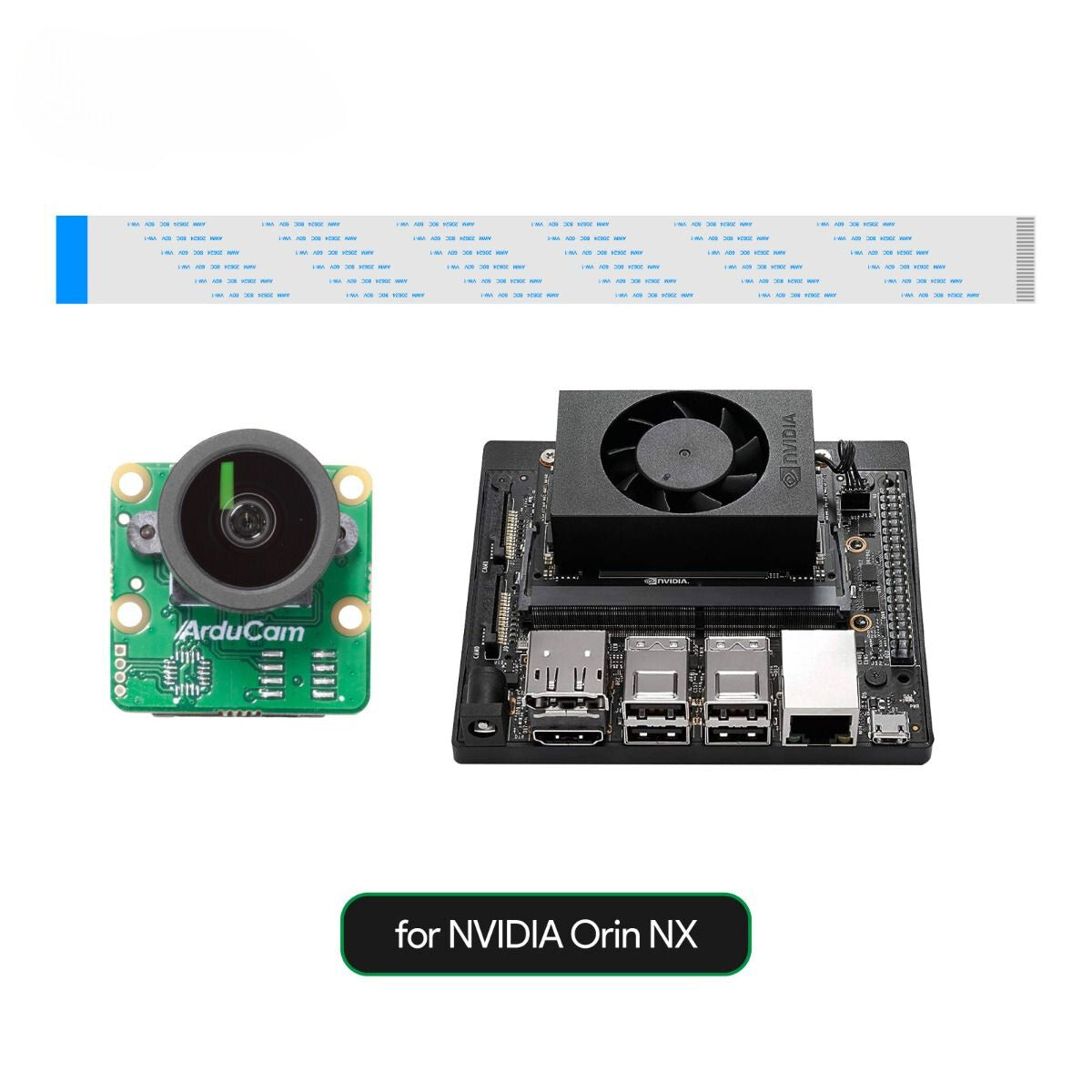

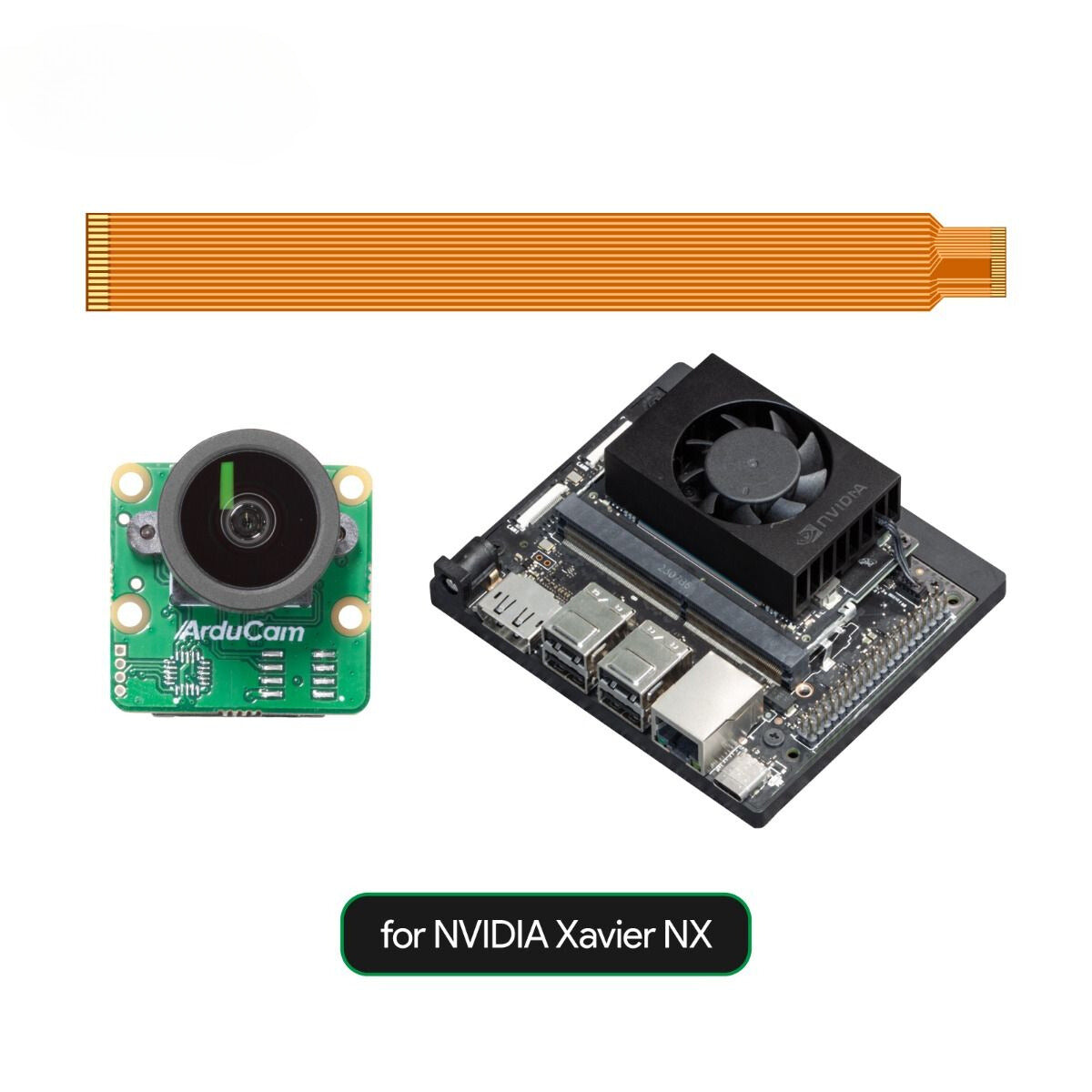

This camera belongs to Arducam's V3 lineup of camera modules specifically created for Nvidia Jetson. It incorporates a Sony 11.9MP IMX708 image sensor to capture high-quality Full HD videos and still images. It is compatible with NVIDIA Jetson Nano, Xavier NX, and NVIDIA Orin NX/AGX Orin, Orin Nano, but only on certain JetPack Versions.

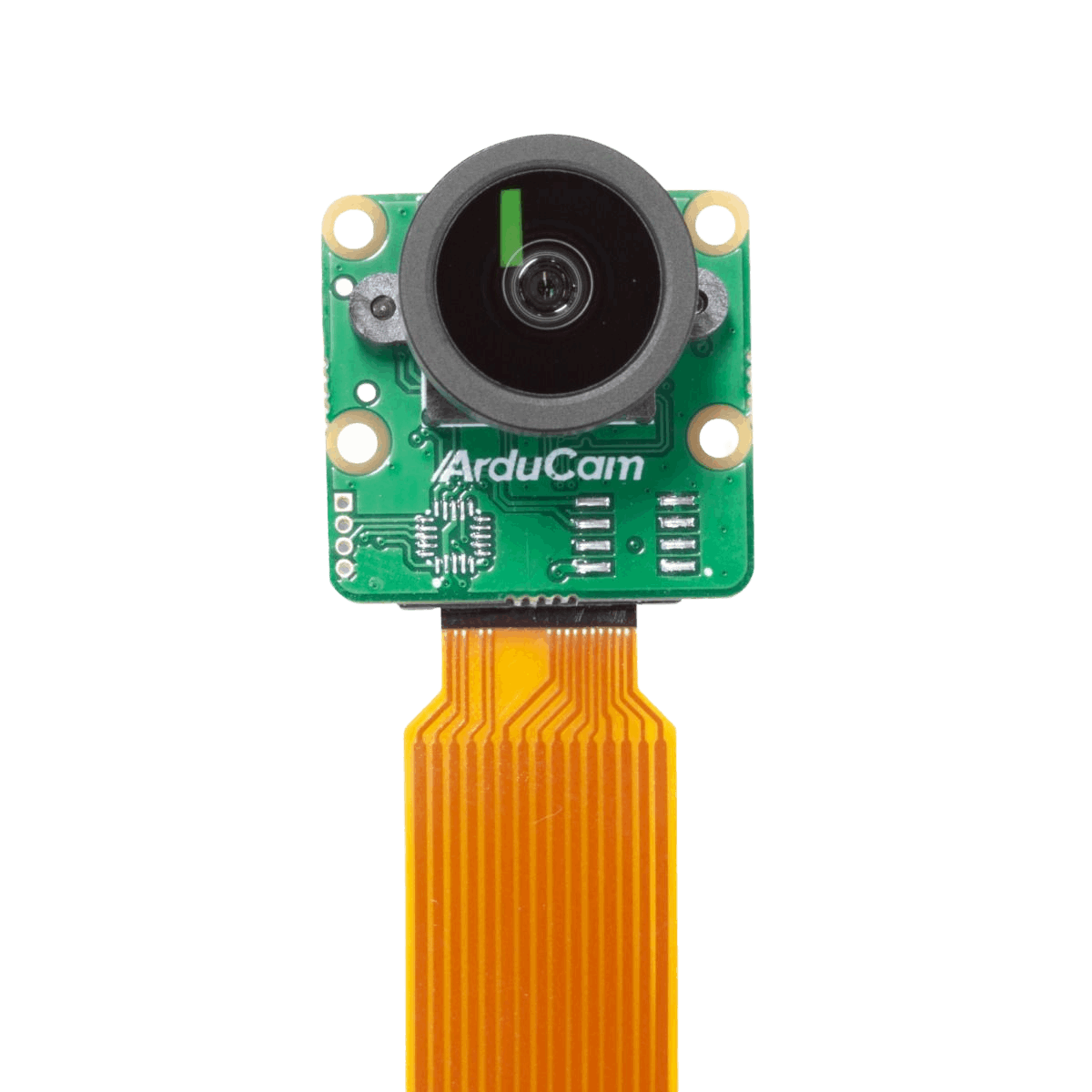

The camera is equipped with an M12 lens that has a wide-angle of 150°(D). Wide-angle lenses are known for their ability to capture a larger depth of field and minimize bokeh. With manual focus, this camera is suitable for capturing macro shots, low light conditions, and other scenarios where achieving autofocus may be challenging.
Kernel Camera Driver
To ensure compatibility, it is important to refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms as this camera is dependent on kernel drivers. Specifically, it requires one kernel version and one camera driver to function properly.
SUPPORTED PLATFORM DISCLAIMER
This camera is exclusively tailored for the official NVIDIA® Jetson™ Developer Kit by default, thereby lacking compatibility with third-party carrier boards.

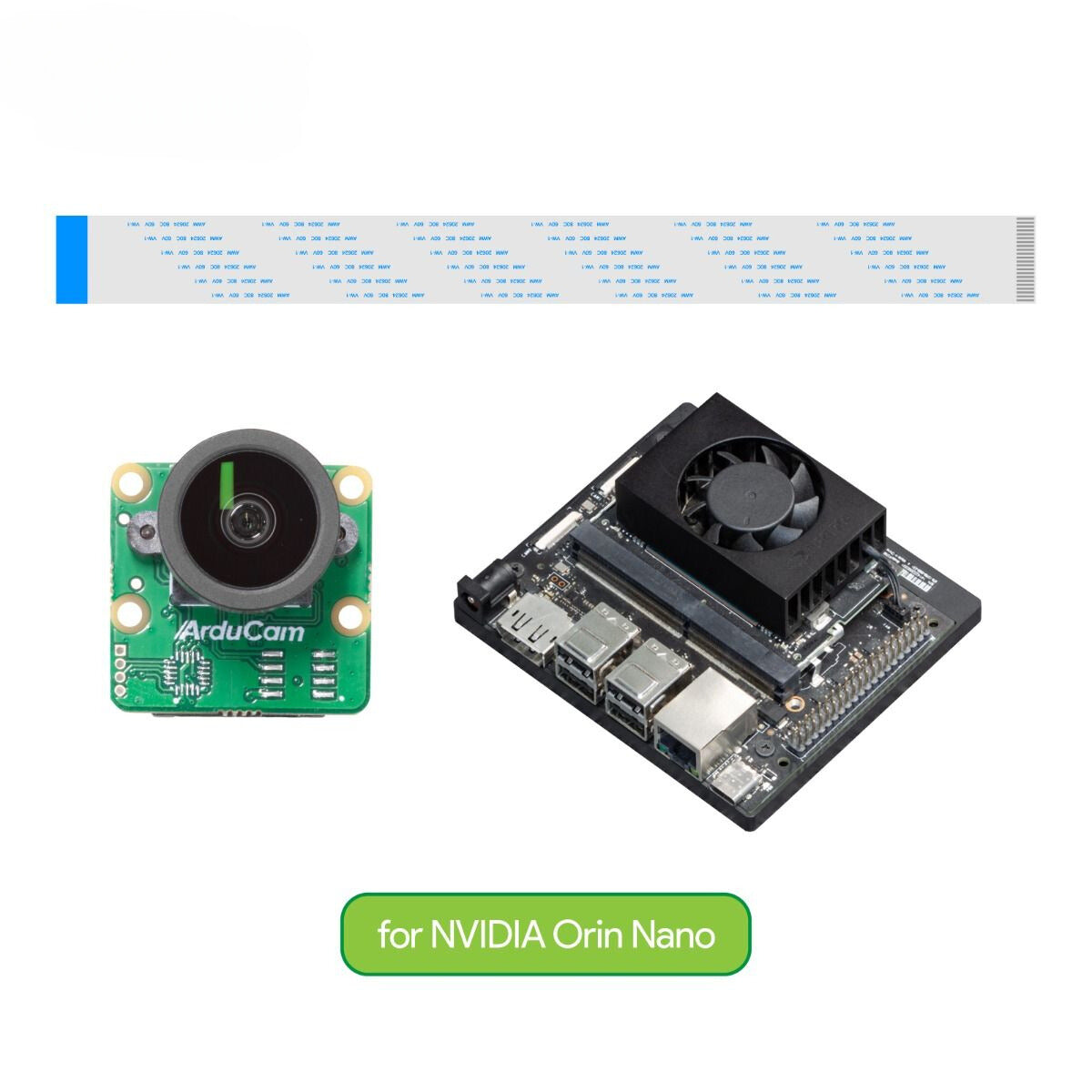

Instructions for Orin Nano/NX

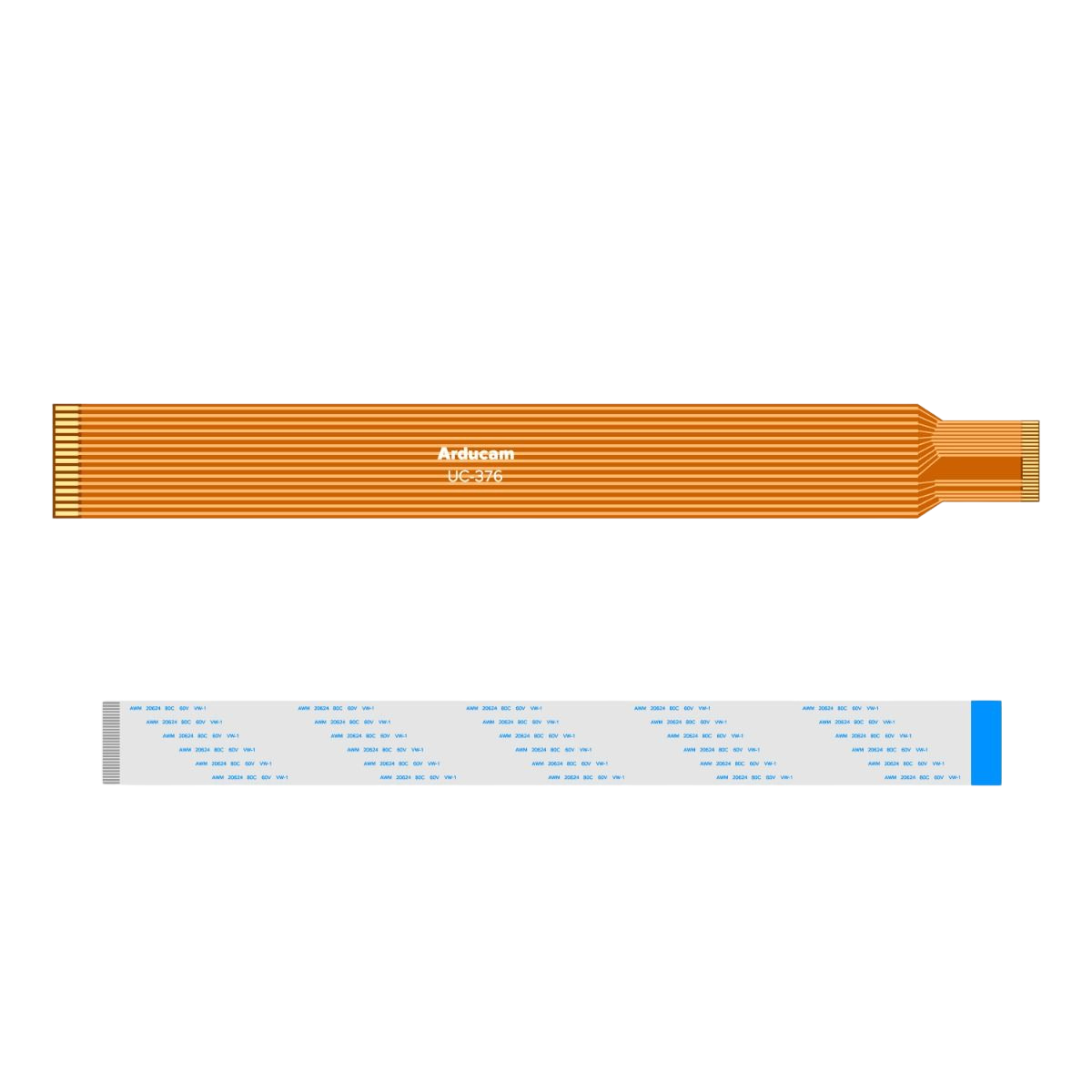

For the Orin Nano/Orin NX, a 22-22 pin FFC (CB023) is necessary. In the case of utilising an AGX Orin, an extra camera adapter (B0473, contact us or use our live chat to find out more) is mandatory.
