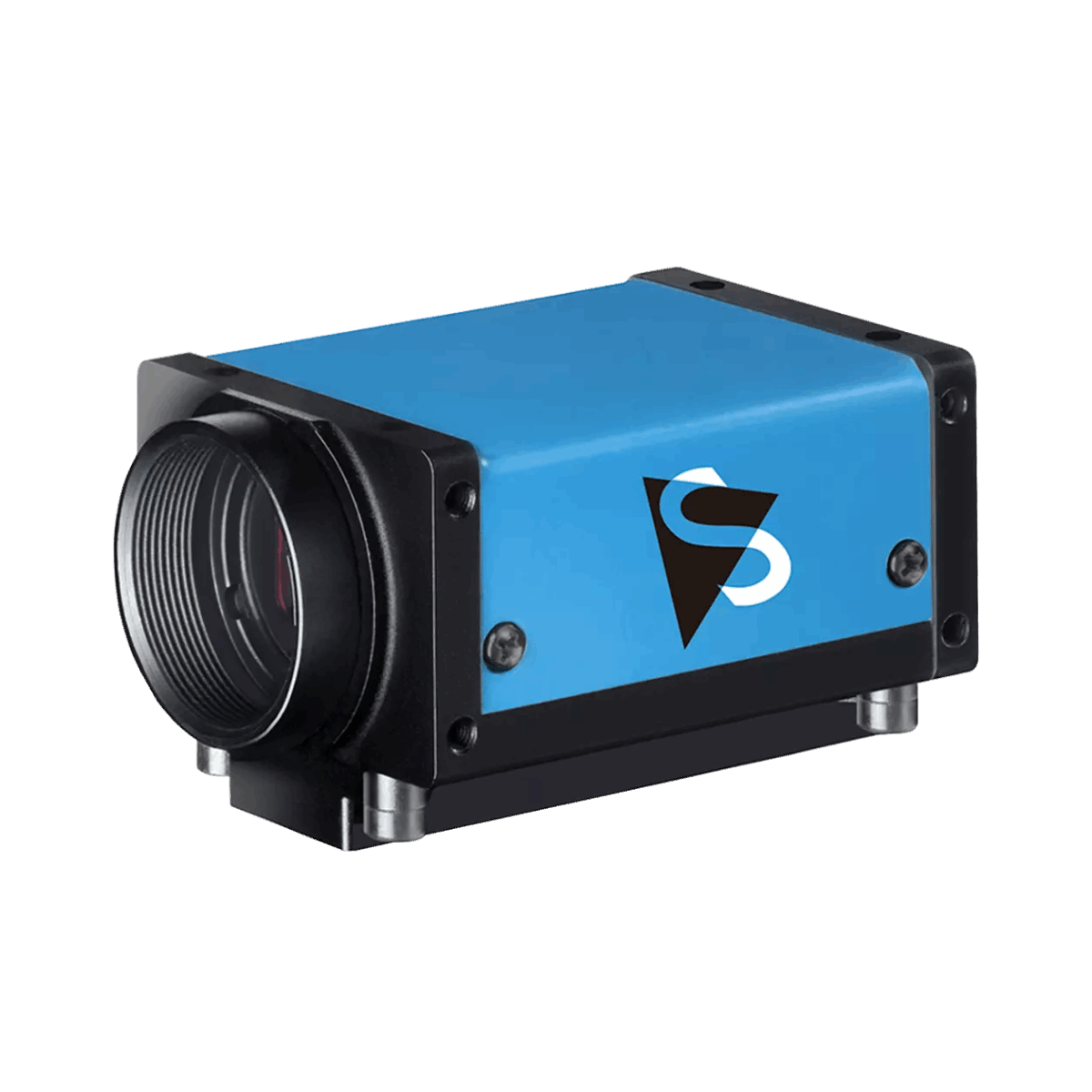

12.3MP 1.1" IMX304 USB3.1 Colour Camera
SKU: DFK 38UX304
Couldn't load pickup availability
Specification
Specification

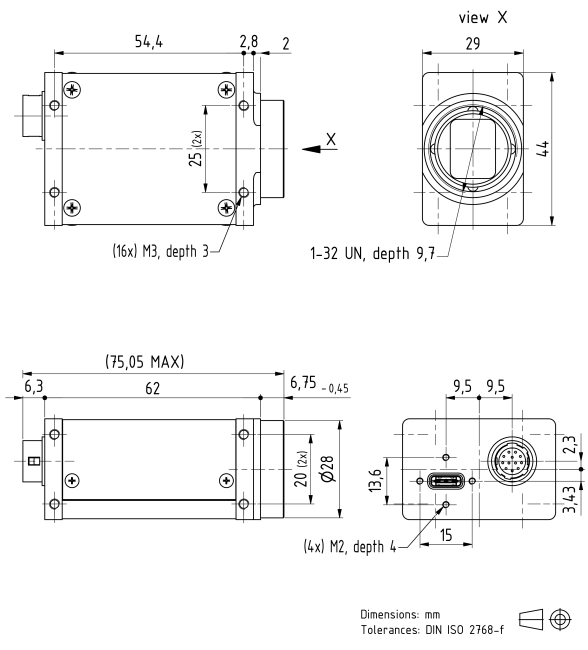

Dimensions
Dimensions
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- 38U Series Colour Industrial Camera
- USB 3.1 Interface
- 1.1 inch Sony CMOS Pregius IMX304 Sensor
- 4,096×3,000 (12.3 MP), up to 26 fps
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Global Shutter
- Trigger and I/O Inputs
- Only 29×44×60 mm
Do you need a C-Mount lens to pair with your camera? See our catalogue of C-Mount lenses.
What are the benefits of using a USB interface camera?
USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).
What are the 38U series cameras?
The 38U series industrial cameras offer impressive image quality and high resolution, reaching up to 24.5 MP. These cameras are specifically designed to meet the requirements of demanding manufacturing and factory automation applications. By leveraging USB 3.1’s superior data transfer rates, the 38U Series cameras ensure efficient and reliable performance. Moreover, these cameras come equipped with advanced features such as external trigger control, advanced readout functions, and image and colour processing capabilities, further enhancing their functionality and versatility.
