• 23G Series, The Imaging Source DFK 23GM021 Colour Camera
1 2

The Imaging Source

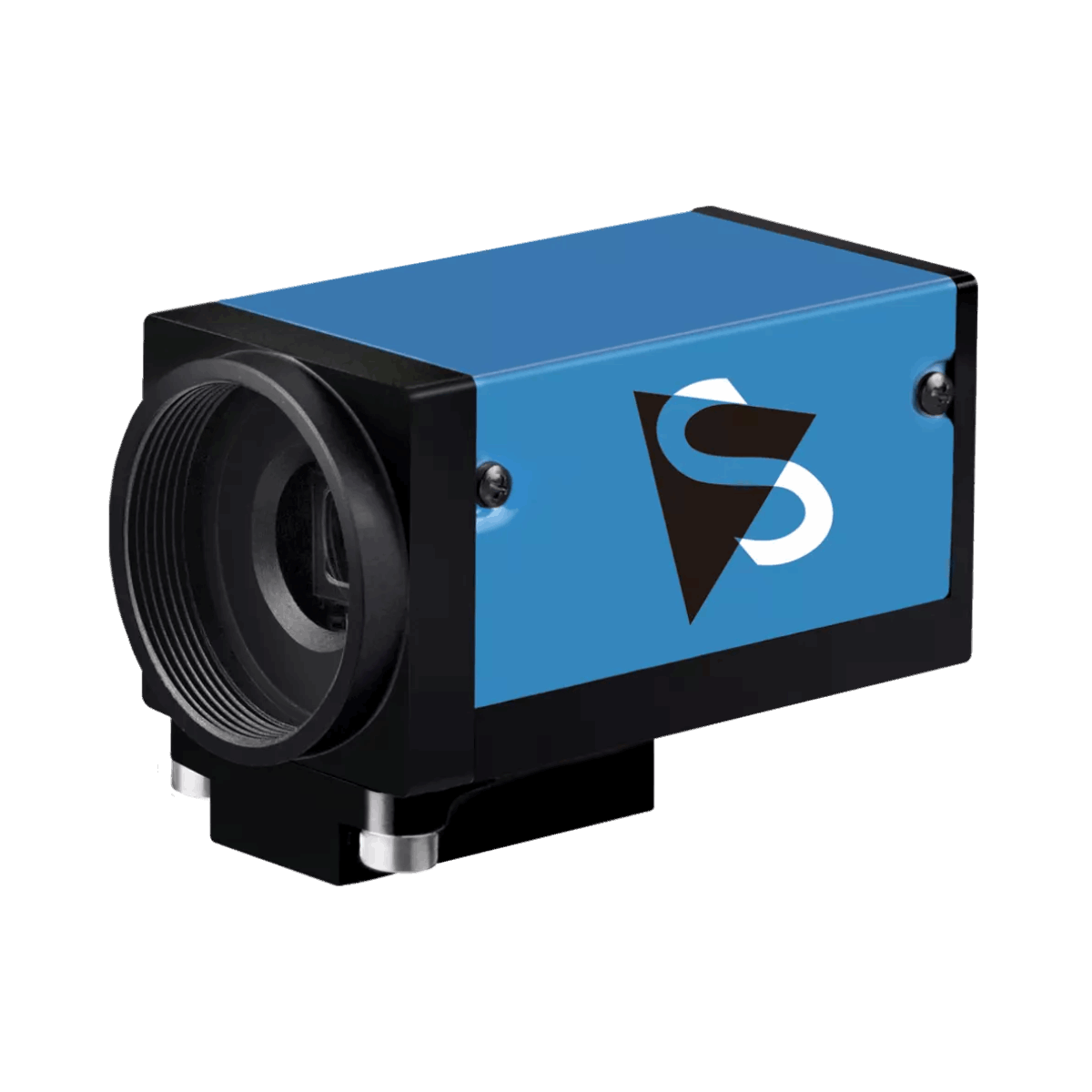

1.2MP 1/3" MT9M021 GigE Colour Camera

SKU: DFK 23GM021

Login to see the price

Specification

DFK 23GM021

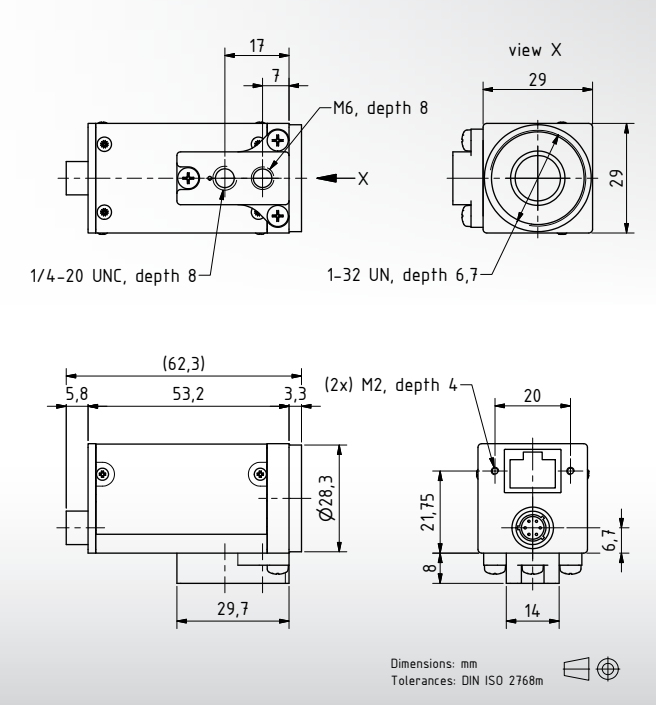

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • 23G Series Colour Industrial Camera
  • GigE Interface (RJ45)
  • 1/3 inch onsemi CMOS MT9M021 Sensor
  • 1,280×960 (1.2 MP), up to 60 fps
  • Pixel Size: H: 3.75 µm, V: 3.75 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Casing Compatible to Most Analog Cameras
  • Only 29×29×57 mm

What are the benefits of using a GigE interface camera?

GigE is a well-established and trusted technology due to the many protocols available, such as GenlCam. It is well-suited for a wide range of applications, including high-resolution cameras, real-time image processing, and robust data transmission. Furthermore, because of its twisted shielded pairs, this interface does not suffer from interference due to external sources such as RF (Radio Frequencies). GigE enables long range data transfer, with cable lengths of up to 100m, whereas USB is up to 7m (without optical/active cables).

What are the 23G series cameras?

The 23 Series GigE industrial cameras are a compact industrial camera family and the predecessor of the 33 series. These CMOS sensors have a resolution of up to 5MP and are capable of reaching frame rates of up to 60 fps. They are equipped with onsemi sensors, providing a compact and robust design that caters to a wide array of image processing applications.
