The Imaging Source

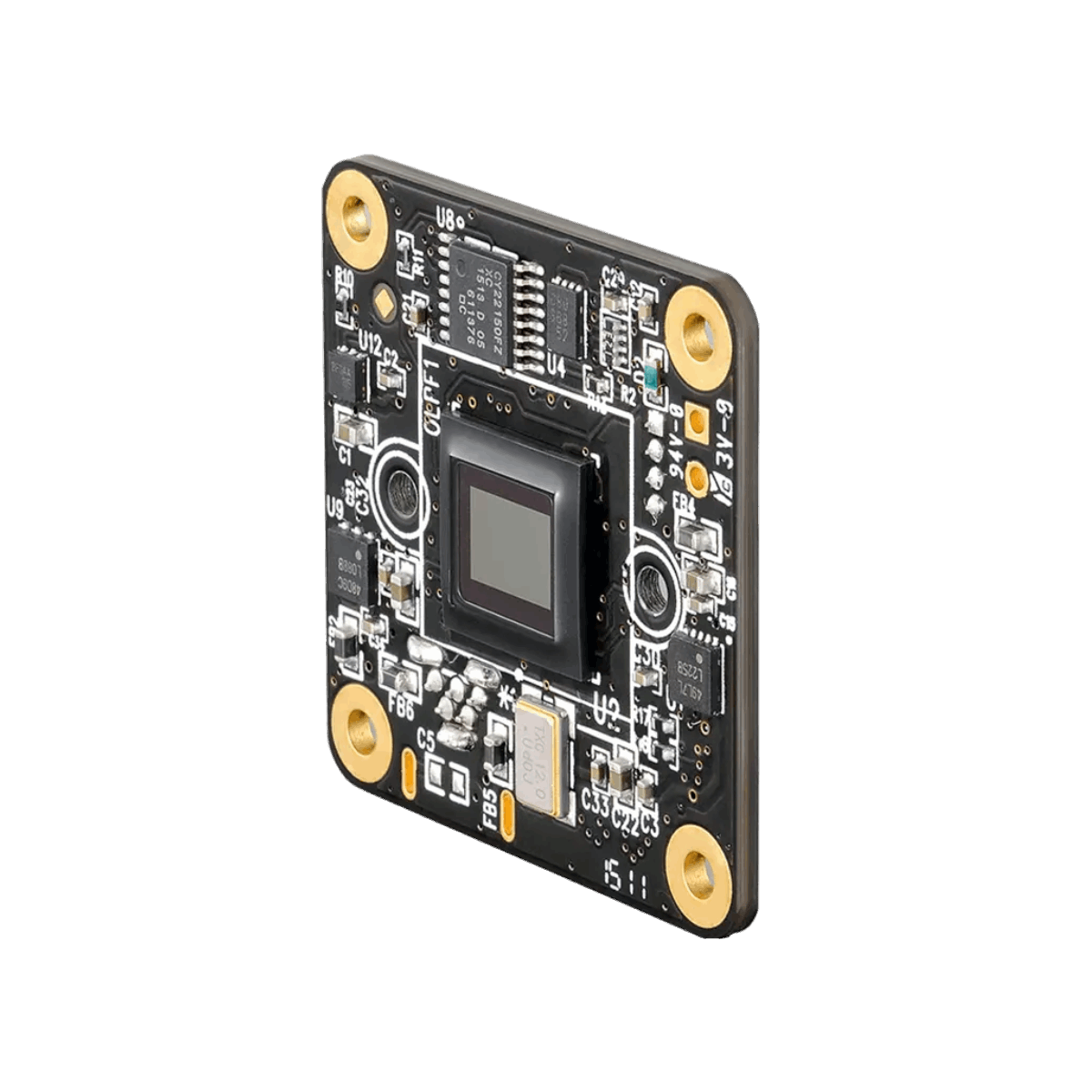

1.2MP 1/3" AR0134 USB2.0 Colour Board Camera

SKU: DFM 42BUC03-ML

Login to see the price

Specification

DFM 42BUC03-ML

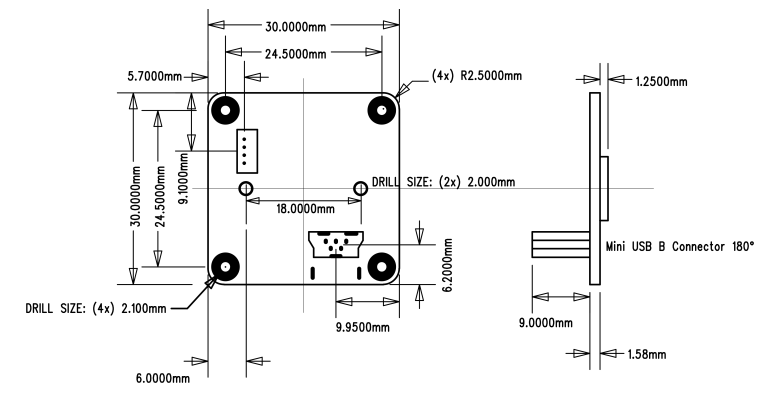

Dimensions

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • 2U Series Colour Board Camera
  • USB 2.0 Interface
  • 1/3 inch onsemi CMOS AR0134 Sensor
  • 1,280×960 (1.2 MP), up to 25 fps
  • Pixel Size: H: 3.75 µm, V: 3.75 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 30×30×15 mm

What are the benefits of using a USB interface camera?

USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).

What are the 2U series cameras?

The Imaging Source 2 Series, previously known as the One4All series, presents a range of CMOS colour cameras that serve as an excellent choice for applications that demand a cost-effective USB 2.0 imaging solution. Additionally, the series offers board-level variants for those who prefer that option. These compact cameras provide high image quality and come equipped with features such as binning, windowing, and high-speed readout, resulting in reduced image noise levels. With resolutions varying from 0.4 to 5 MP and frame rates up to these durable digital industrial cameras, they are well-suited for standard machine vision applications that require a USB 2.0 interface.

What are board-level cameras?

Board-level cameras, also referred to as board cameras or PCB cameras, are compact imaging devices specifically designed for integration into electronic systems and applications. Unlike traditional cameras that come with separate housings, board-level cameras are typically mounted directly onto a circuit board. These cameras are extensively utilised across diverse industries and applications where space is limited, and a compact form factor is indispensable.
