3D ToF Development Kit flexx2 38k

SKU: pmd-flexx2

£278.00 GBP
£278.00 GBP
Sale Sold out

Specification

flexx2 Data Sheet

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

This product has been discontinued and has been superseded by the Cube Eye range of Time of Flight Cameras.

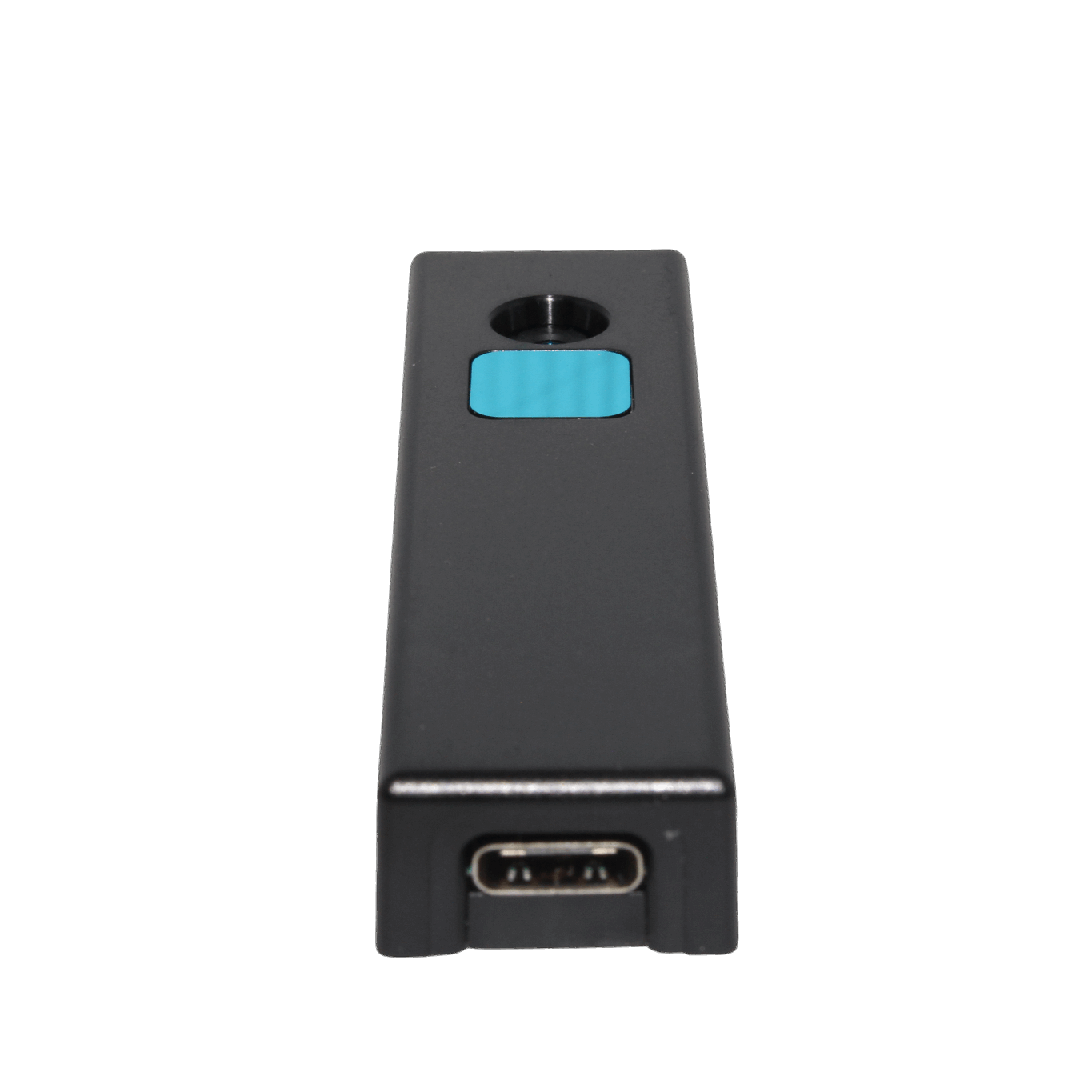

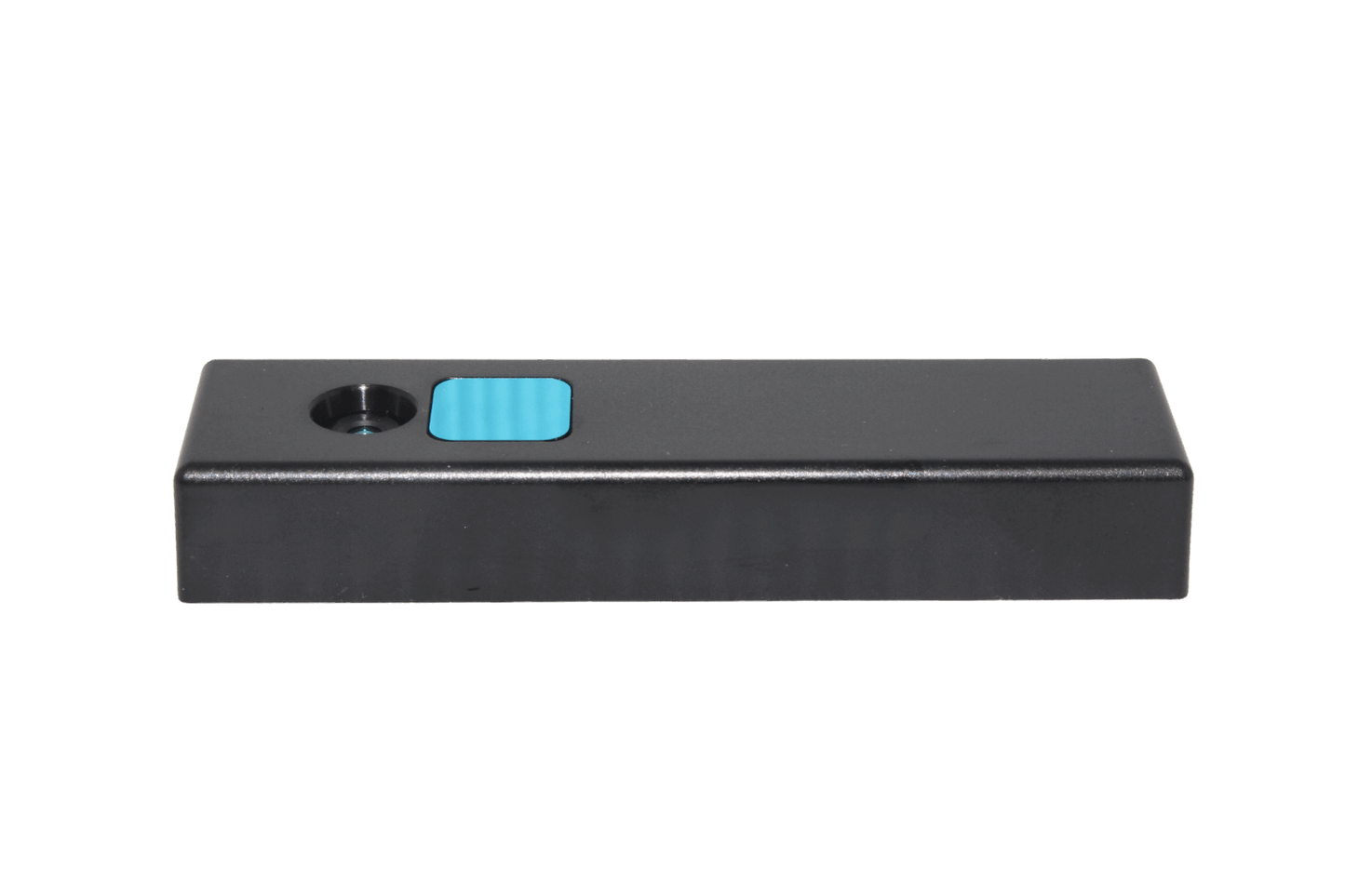

The entry level Flexx2 ToF 38k 3D Camera

Key Features

  • flexx 3D Time-of-Flight Camera
  • Based on pmd Time-of-Flight (ToF) technology
  • IRS2381C ToF Sensor
  • HQVGA 224 x 172 pixels
  • 56 x 44 degree field of view
  • Range: 0.1-7 m
  • Up to 60 fps
  • USB 3.0 powered
  • Laser Class 1
  • Including a powerful software suite

Overview

The PMD 3D Sensing Family offers a versatile solution for seamlessly incorporating 3D vision into your product. With its plug-and-play functionality and comprehensive suite of tools and software, you can quickly get started. As you progress towards integrating it into your final product, you can leverage the exceptional scalability of our 3D cameras and partner ecosystem to maximize your returns.

This 60fps ToF depth-sensing camera can create measurements from 10cm to as far as 7 metres in a package measuring just 72.1mm x 19.2mm x 10.2mm.

It uses a Vertical-Cavity Surface-Emitting Laser (class 1) that transmits in the 940nm wavelength, reducing sunlight's effects in an outdoor environment.

This, therefore, is an ideal 3D sensor for all kinds of applications where distance measurement is important.

Usage examples

  • Automotive - exterior safety or internal with gesture control
  • Industrial - can be integrated into production monitoring systems
  • Autonomous vehicles, robots, and drones - for collision avoidance
  • Space - see a use case for free-flying robotics on the ISS

Data Outputs

  • 3D point cloud
  • Infrared 2D images
  • Confidence value - a quality indicator based on exposure/saturation level
  • USB3 interface

Package

The pmd flexx2 is a 3D camera development kit with a software suite called "Royale" to access the camera functions. A visualisation tool is also included in the SDK. Royale is available for Windows 10, and Linux/ARM and can be integrated into several programming environments, such as ROS, OpenCV, and Matlab. The development environment is C++.

Contact us for volume pricing.
